Victech Clutch Disc Set + Cover Gasket Yamaha TT-R125 2003–2026
- Manufacturer part #
- 5992
- APJ SKU
- APJ000004
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.
5 friction discs + 1 clutch cover gasket · Yamaha TT-R125 family 2003–2026

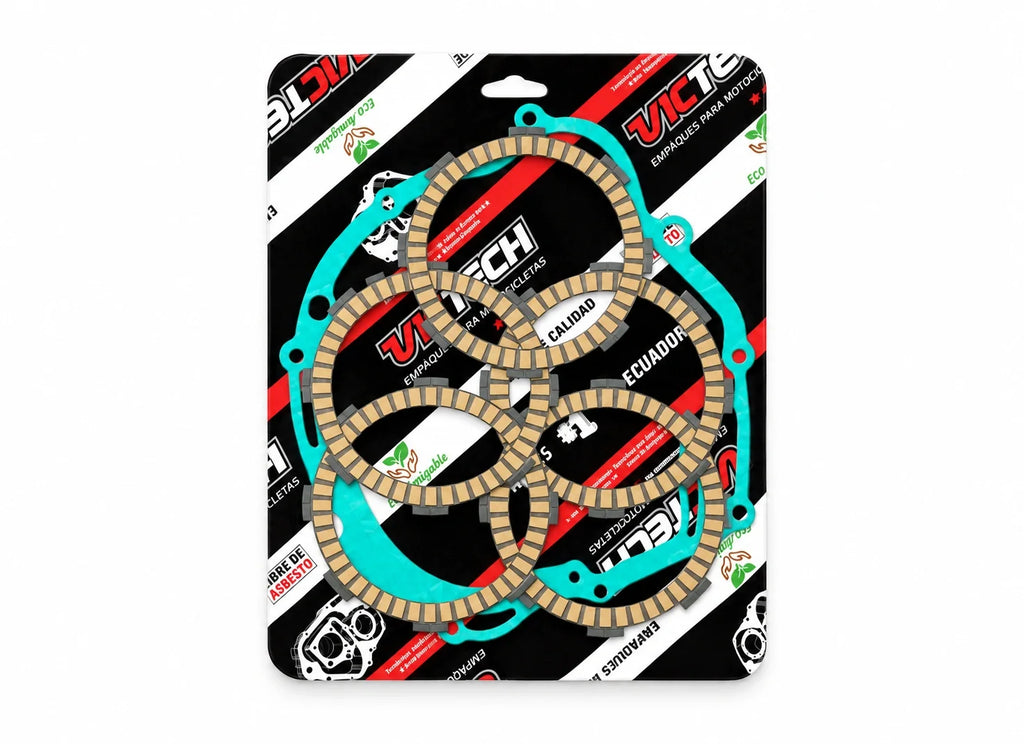

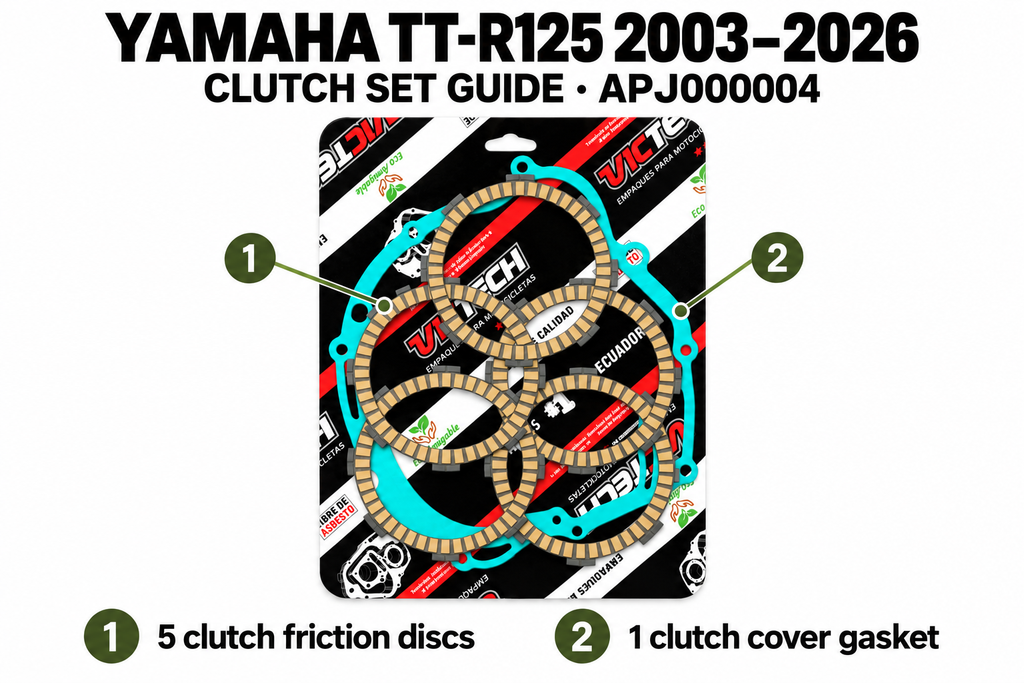

VICTECH clutch friction disc set with a matching cover gasket for the Yamaha TT-R125 versions and years listed below. Supplied as one service set with five friction discs and one cover gasket. See the numbered image for the two component groups included.
- 5 × Clutch friction discs
- 1 × Clutch cover gasket — VICTECH reference 3276
Steel separator plates, clutch springs, basket, hub, fasteners, oil seals and engine oil are not included. Inspect the remaining clutch components and replace additional parts as required by the service manual.
Technical specifications
| Quantity supplied | 5 friction discs + 1 clutch cover gasket |
|---|---|
| Motorcycle | Yamaha TT-R125 / TT-R125E / TT-R125L / TT-R125LE |
| Model years | TT-R125: 2003–2004 · TT-R125E: 2003–2009 · TT-R125L: 2003–2008 · TT-R125LE: 2003–2026 |
| Package format | Retail pack |
| Product type | Clutch Disc Sets |
| Cover gasket reference | VICTECH 3276 |
| Friction disc inner diameter | 100.18 mm |
| Friction disc outer diameter | 123.15 mm |
| Friction disc thickness | 3.2 mm |
| Yamaha comparison reference — Friction disc | 598-16321-01-00 |
| Yamaha comparison references — Clutch cover gasket | 5HP-15461-00-00 / 5HH-E5461-00-00 — match model year and original gasket profile |
Packaged product — weight & dimensions
| Packaged product weight | 5 oz (141.7 g) |
|---|---|
| Packaged dimensions (L × W × H) | 10 × 9 × 0.5 in (25.40 × 22.86 × 1.27 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Inspect the clutch basket and hub for notching, and check steel separator plates, springs and release components against the service manual. Prepare the friction discs as directed by VICTECH and Yamaha; use the specified engine oil and verify plate order, total stack height, tightening torque and clutch free play before operation.
OEM reference note: Yamaha numbers identify original components for comparison. They do not constitute manufacturer-certified interchange for the complete VICTECH 5992 service set. Confirm both friction-disc geometry and the cover gasket against the removed parts.
Material & construction
TEADIT NA-1005 fiber material is used for the included clutch cover gasket (VICTECH 3276), as confirmed by APJ Motorsports.
These TEADIT specifications apply only to the cover gasket, not the five friction discs.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
