ATHENA
Athena Blue Dual-Spring Valve Stem Seal Pair 5.5 mm
- Manufacturer part #
- M739000012208A
- Supplier reference
- 3589
- APJ SKU
- APJ000015
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.

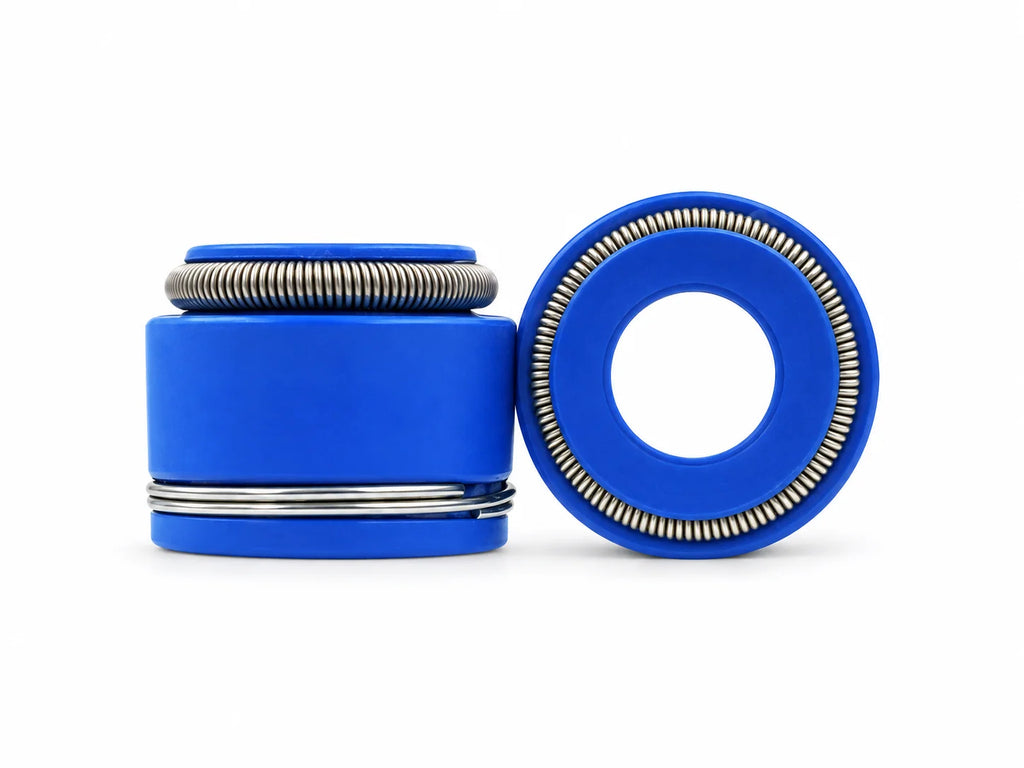

2 blue dual-spring valve stem seals · 5.5 mm ID · ATHENA M739000012208A
Service the valve stem and guide interface with this blue dual-spring seal pair. The design uses two springs and is identified as Flex Seal in Vedamotors’ product literature. Vedamotors describes its blue two-spring version as an option intended to offer greater durability. Select the correct seal profile and valve position for your engine.
- 2 blue dual-spring valve stem seals (1 pair).

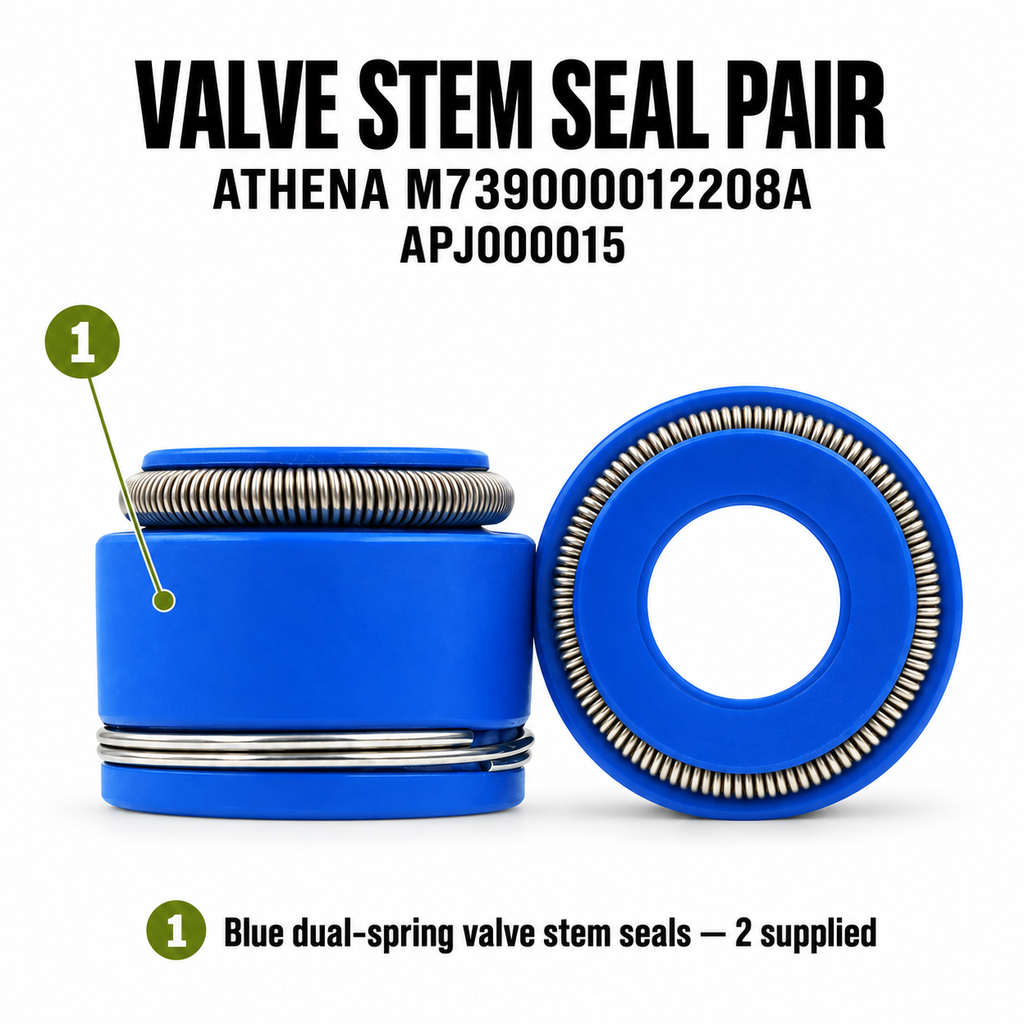

Guide number 1 identifies the supplied seal type. Valve guides, valves, springs and cylinder-head gaskets are not included.
Technical specifications
| Quantity supplied | 2 valve stem seals (1 pair) |
|---|---|
| Motorcycle | Selected Honda models — see application table |
| Model years | See model-specific U.S. coverage |
| Package format | Valve stem seal pair |
| Product type | Valve Stem Seals |
| Nominal valve stem diameter | 5.5 mm (APJ-confirmed nominal stem size) |
| Seal inner diameter | 5.5 mm (APJ-confirmed) |
| Seal body diameter | 11 mm (APJ-confirmed) |
| Seal maximum outer diameter | 13.2 mm (APJ-confirmed) |
| Seal overall height | 9.7 mm (APJ-confirmed) |
| Configuration | Blue, dual spring / Flex Seal |
| Honda OEM reference for comparison | 12208-413-003 |
| Earlier Honda OEM reference | 12209-428-003 — superseded by 12208-413-003 in the Honda OEM listing |
| Assembly | Cylinder head / valve guides |
| Valve position | Verify intake / exhaust application in the exact engine’s OEM diagram |
Packaged product — weight & dimensions
| Packaged product weight | 0.15 oz (4.3 g) |
|---|---|
| Packaged dimensions (L × W × H) | 5 × 2.5 × 0.5 in (12.70 × 6.35 × 1.27 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Use the motorcycle service manual to identify the correct intake or exhaust seal and installation sequence. Inspect stems and guides for wear; new seals do not correct excessive guide clearance. Protect the sealing lip from keeper grooves, lubricate as specified and install squarely with the correct driver. Keep both springs seated and check the completed assembly before starting the engine.
OEM reference note: numbers identify original components for comparison. This is an ATHENA aftermarket seal pair, not a Honda OEM product or a manufacturer-certified universal interchange.
Material & construction
Blue dual-spring design: the molded sealing body uses two springs. Vedamotors identifies the blue variant as an option for greater durability; its historical catalog calls this configuration Flex Seal. This describes the construction and manufacturer-stated benefit, not a measured service-life guarantee.
The exact elastomer compound and temperature limit have not been verified for this reference. Blue pigmentation alone does not establish the compound, a higher heat rating or alcohol-fuel suitability. TEADIT gasket-sheet ratings do not apply to valve stem seals.
