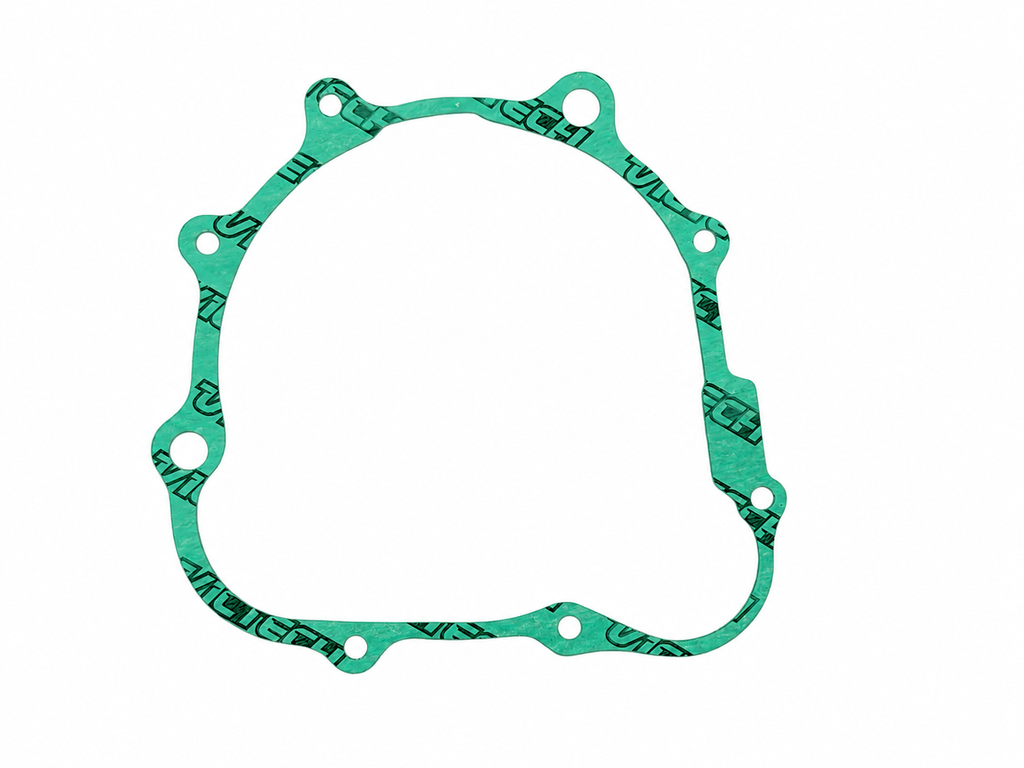

Victech Magneto Cover Gasket Honda CRF230F CRF150F XL200
- Supplier reference
- 6102
- APJ SKU
- APJ000024
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.

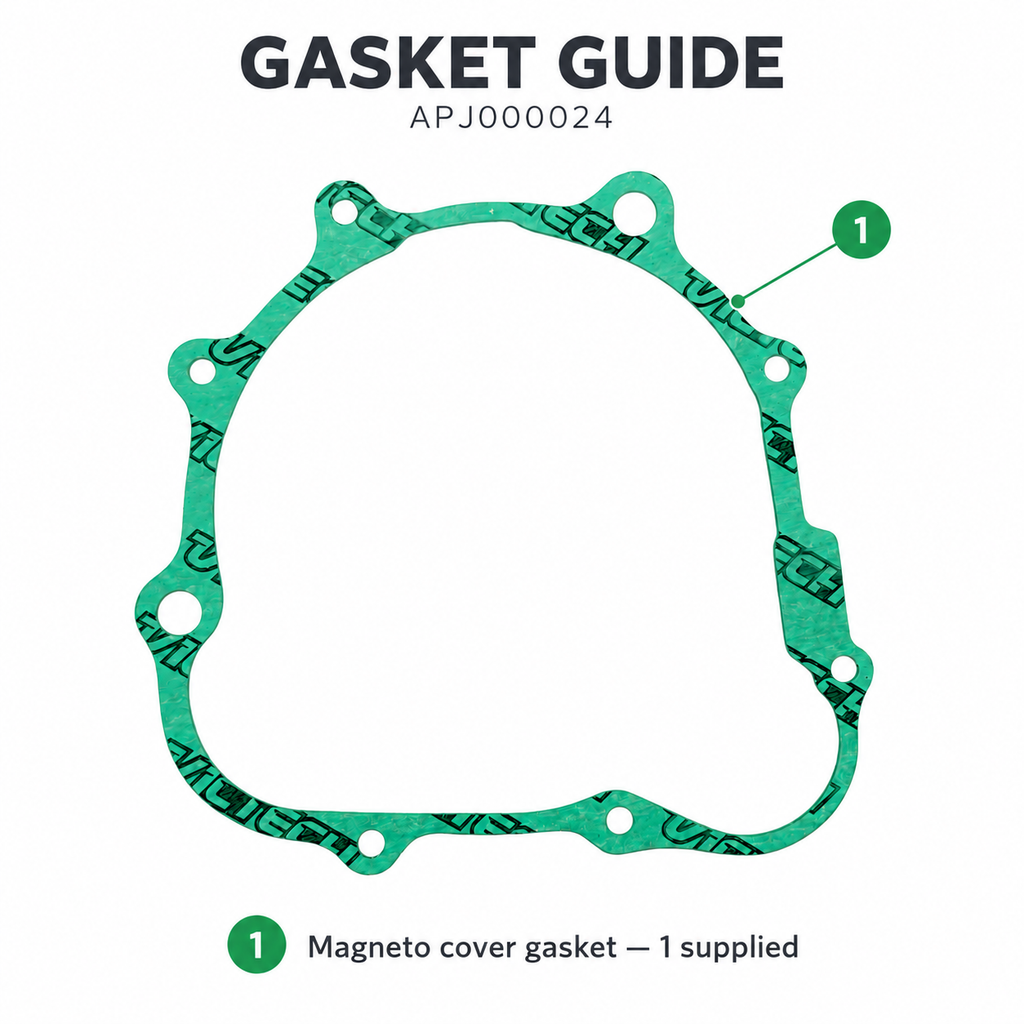

1 magneto cover gasket · VICTECH 6102 · Honda applications listed below

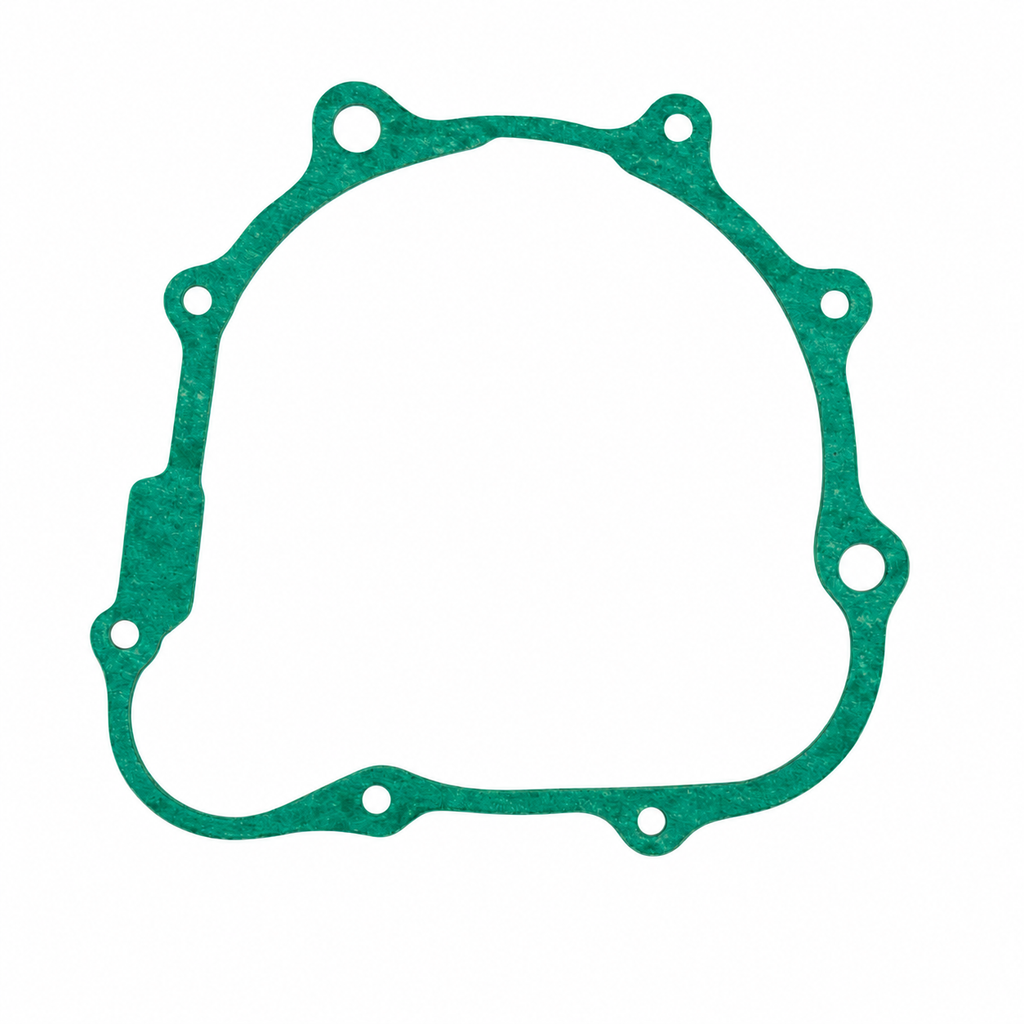

Replacement left-side magneto / stator cover gasket for the Honda applications listed below. Intended for resealing the cover-to-engine joint after removal for inspection or service.
- 1 gasket
Technical specifications
| Quantity supplied | 1 gasket |
|---|---|
| Product type | Magneto Cover Gasket |
| Position | Magneto / stator cover |
Packaged product — weight & dimensions
| Packaged product weight | 0.10 oz (2.8 g) |
|---|---|
| Packaged dimensions (L × W × H) | 7 × 7 × 0.3 in (17.78 × 17.78 × 0.76 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Match the new component to the removed part and inspect the mating surfaces before assembly. Follow the motorcycle service manual for installation, seal orientation and applicable tightening values.
Material & construction
TEADIT NA-1005 fiber material is used for the magneto cover gasket (VICTECH 6102), as confirmed by APJ Motorsports.
These TEADIT specifications apply to the sheet material of this gasket.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
