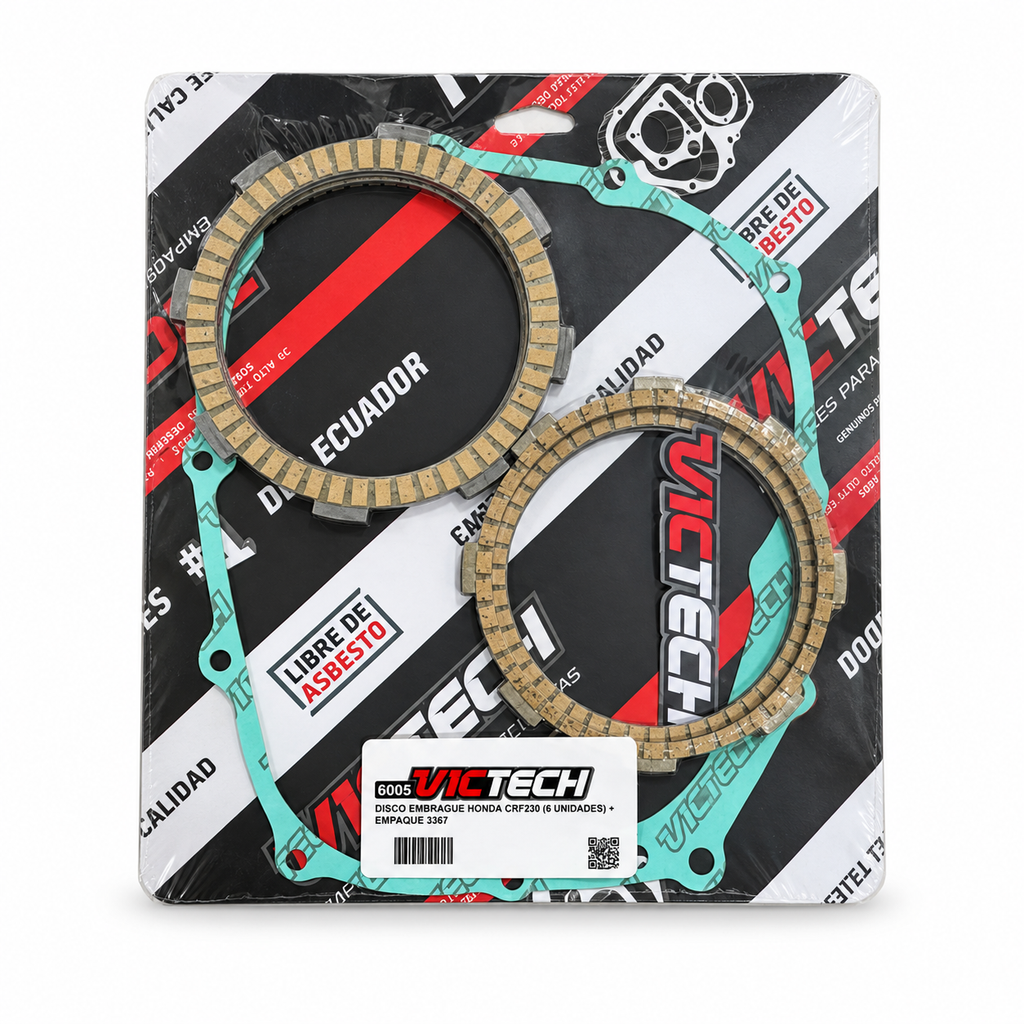

Victech Clutch Disc Set + Gasket Honda CRF230F CRF150F
- Supplier reference
- 6005
- APJ SKU
- APJ000025
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.

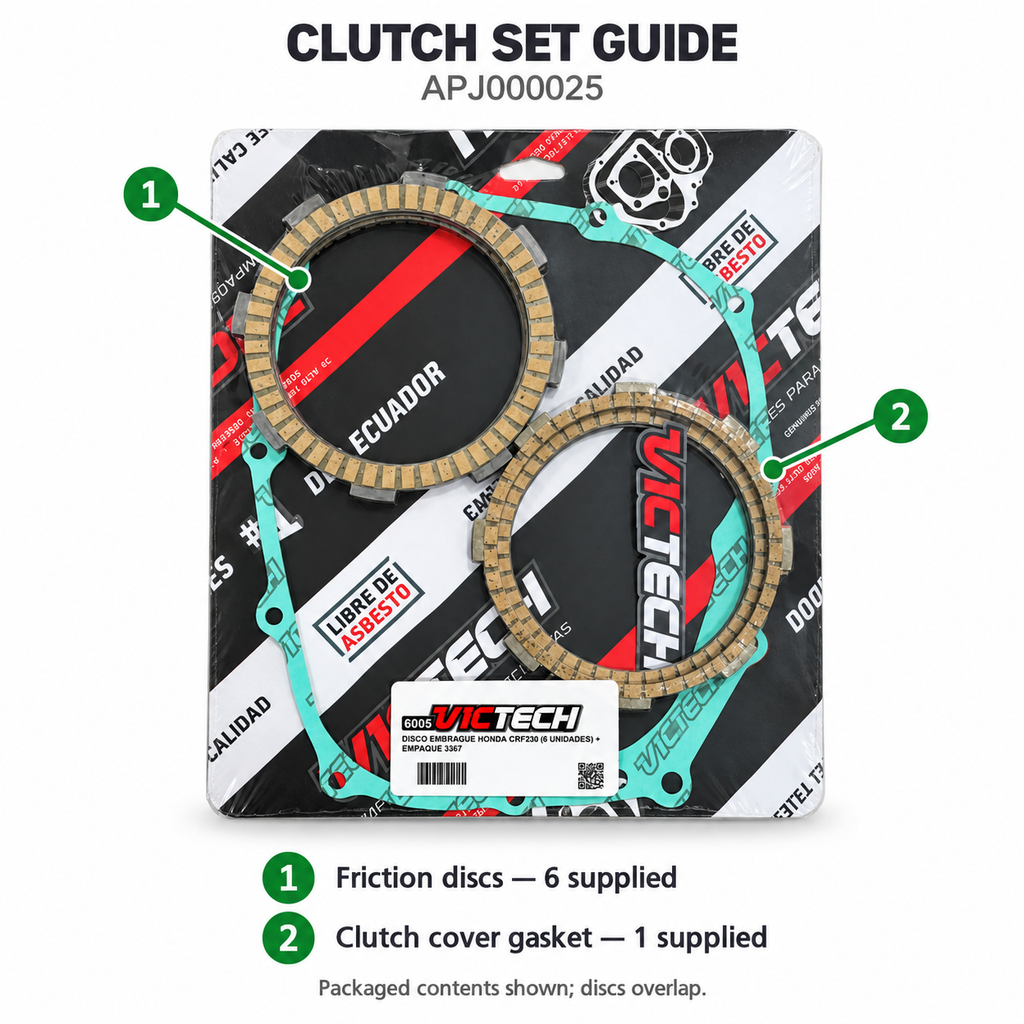

6 friction discs + 1 cover gasket · Honda CRF230F 2003–2019 / CRF150F 2003–2005
Service the clutch friction pack and replace the cover gasket with one convenient set. Supplier reference 6005 includes six friction discs and one clutch cover gasket, reference 3367, for the listed Honda CRF230 application.
- 6 clutch friction discs
- 1 clutch cover gasket — reference 3367
Steel separator plates, clutch springs and other clutch components are not included in the listed contents.
Technical specifications
| Quantity supplied | 6 friction discs + 1 cover gasket |
|---|---|
| Product type | Clutch friction disc set with cover gasket |
| Cover gasket reference | 3367 |
| Motorcycle | Honda CRF230F / CRF150F |
| Model years | CRF230F: 2003–2019; CRF150F: 2003–2005 |
| Package format | Flat pack |
| Honda OEM comparison — Friction discs, standard group | 4 × 22201-KPM-850 |
| Honda OEM comparison — Friction disc, additional profile | 1 × 22201-KBW-900 |
| Honda OEM comparison — Friction disc, judder-spring profile | 1 × 22201-KAZ-000; replaces 22201-KY1-000 and 22201-MJ8-000 |
| Honda OEM comparison — Clutch cover gasket | 11393-KGA-900 / 11393-KGA-901 / 11393-KGA-902; 902 is the current replacement for 901 |
Packaged product — weight & dimensions
| Packaged product weight | 6.5 oz (184.3 g) |
|---|---|
| Packaged dimensions (L × W × H) | 10 × 9 × 0.5 in (25.40 × 22.86 × 1.27 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Inspect the clutch basket, hub, steel separator plates and springs for wear before assembly. Prepare and install the friction discs in the correct order, and check clutch stack height, service limits, fastener torque and oil specifications using the motorcycle service manual. Replace the cover gasket during reassembly.
OEM comparison and installation: Honda specifies three friction-disc references in a 4 + 1 + 1 arrangement. Compare the supplied disc profiles, inner diameters, tangs, thickness and installed stack height with the original assembly. Follow the service manual for the judder spring, spring seat and disc order. VICTECH-specific dimensional confirmation is still required before describing this aftermarket set as a fully homologated replacement of all three OEM profiles.
Honda OEM reference sources
Honda CRF230F 2019 clutch diagram · Honda CRF150F 2005 clutch diagram · Honda CRF150F cover gasket · Honda cover gasket replacement reference
Material & construction
TEADIT NA-1005 fiber material is used for the included clutch cover gasket (VICTECH 3367), as confirmed by APJ Motorsports.
These TEADIT specifications apply only to the cover gasket, not the six friction discs.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
