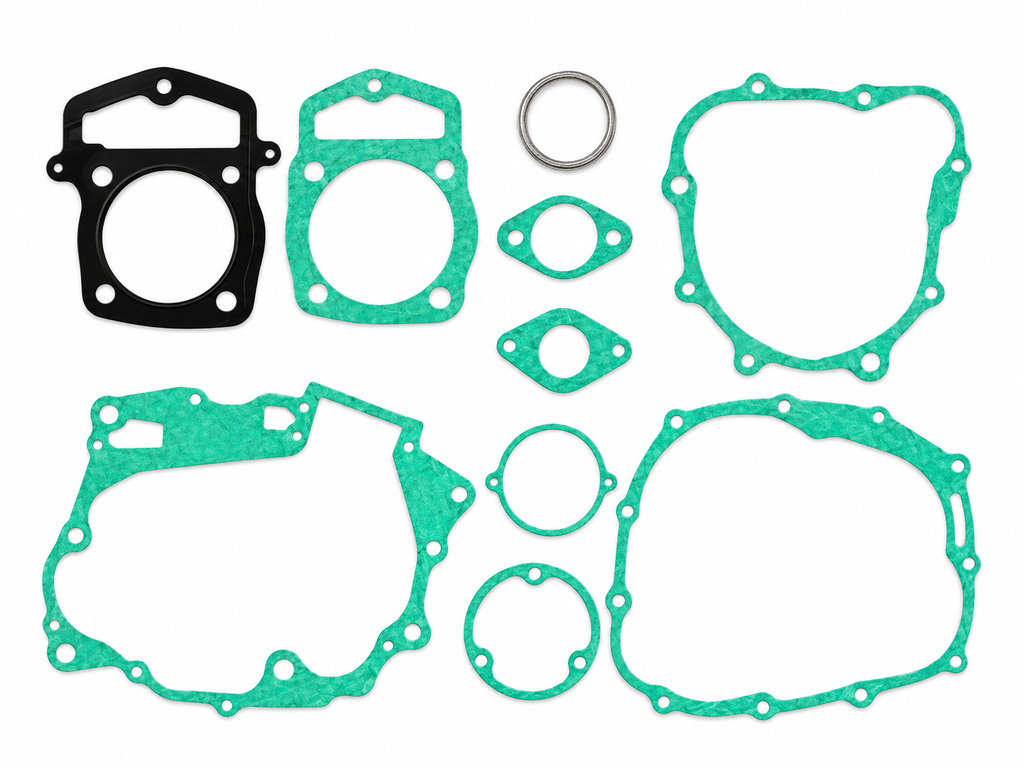

Victech Engine Gasket Set Honda CRF230F 2003–2019
- Manufacturer part #
- 3665
- APJ SKU
- APJ000001
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.
10 pieces · Head-gasket opening Ø 68 mm · Honda CRF230F 2003–2019
3-Layer Steel (MLS) Head Gasket · TEADIT NA-1005 Gasket Material

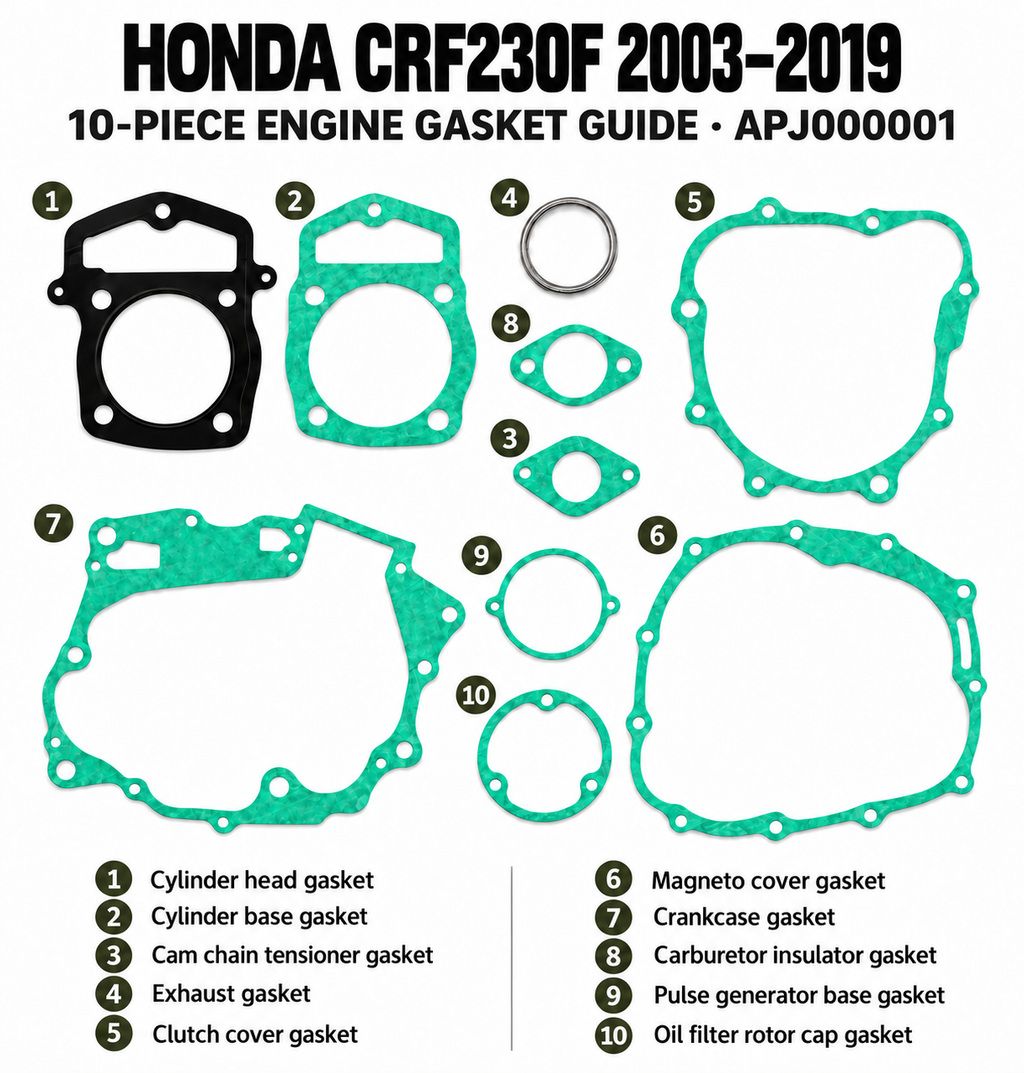

VICTECH engine gasket set for the Honda CRF230F, model years 2003–2019. Supplied as one set with the ten components listed below, covering top-end, crankcase and engine-cover sealing points. Compare the included gaskets with the parts required for your repair before ordering.
- 1 × Cylinder head gasket
- 1 × Cylinder base gasket
- 1 × Cam chain tensioner gasket
- 1 × Exhaust pipe gasket
- 1 × Clutch cover gasket
- 1 × Magneto cover gasket
- 1 × Crankcase gasket
- 1 × Carburetor insulator gasket
- 1 × Pulse generator base gasket
- 1 × Oil filter rotor cap gasket
Technical specifications
| Quantity supplied | 10 gaskets |
|---|---|
| Motorcycle | Honda CRF230F |
| Model years | 2003–2019 |
| Package format | Flat pack |
| Product type | Engine gasket set |
| Cylinder head gasket inner diameter | Ø 68 mm — head-gasket opening |
| Honda reference — Cylinder head gasket | 12251-KT0-711 |
| Honda reference — Cylinder base gasket | 12191-KCN-020 |
| Honda reference — Cam chain tensioner gasket | 14523-KBB-901 |
| Honda reference — Exhaust pipe gasket | 18291-MN5-650 |
| Honda reference — Clutch cover gasket | 11393-KGA-902 |
| Honda reference — Magneto cover gasket | 11395-KCN-020 |
| Honda reference — Crankcase gasket | 11191-KHA-942 |
| Honda reference — Carburetor insulator gasket | 16214-KPS-902 |
| Honda reference — Pulse generator base gasket | 12339-KT0-712 |
| Honda reference — Oil filter rotor cap gasket | 15459-K70-630 |
Packaged product — weight & dimensions
| Packaged product weight | 4 oz (113.4 g) |
|---|---|
| Packaged dimensions (L × W × H) | 11.5 × 9 × 0.3 in (29.21 × 22.86 × 0.76 cm) |
Measurements supplied by APJ Motorsports.
Installation & preparation
Remove residual gasket material and inspect the mating surfaces before assembly. Follow the Honda service manual for surface preparation, gasket placement, sealant requirements, tightening sequence and torque.
OEM reference note: The Honda numbers identify corresponding original components for comparison; some are current replacements for earlier references. This is a VICTECH aftermarket ten-gasket set, not a Honda OEM kit. Confirm the exact model year, gasket profile and dimensions before installation. The 68 mm measurement refers to the head-gasket opening, not the engine cylinder bore.
Honda OEM reference sources
Honda CRF230F gasket kit A · Honda CRF230F gasket kit B · Honda cam chain tensioner · VICTECH 3665 supplier listing.
Material & construction
3-Layer Steel (MLS) Cylinder Head Gasket: Constructed from three layers of non-stainless steel. This head gasket is separate from the eight TEADIT NA-1005 sheet-material gaskets listed below.
TEADIT NA-1005 fiber material is used for eight gaskets in this VICTECH set, as confirmed by APJ Motorsports:
- Cylinder base gasket
- Cam chain tensioner gasket
- Clutch cover gasket
- Magneto cover gasket
- Crankcase gasket
- Carburetor insulator gasket
- Pulse generator base gasket
- Oil filter rotor cap gasket
The cylinder head gasket and exhaust gasket are excluded from these material specifications.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
