Victech Top End Gasket Set Yamaha XT250 2008–2025
- Manufacturer part #
- 3713
- APJ SKU
- APJ000016
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.
4 pieces · Head-gasket opening Ø 76 mm · Yamaha XT250 2008–2025

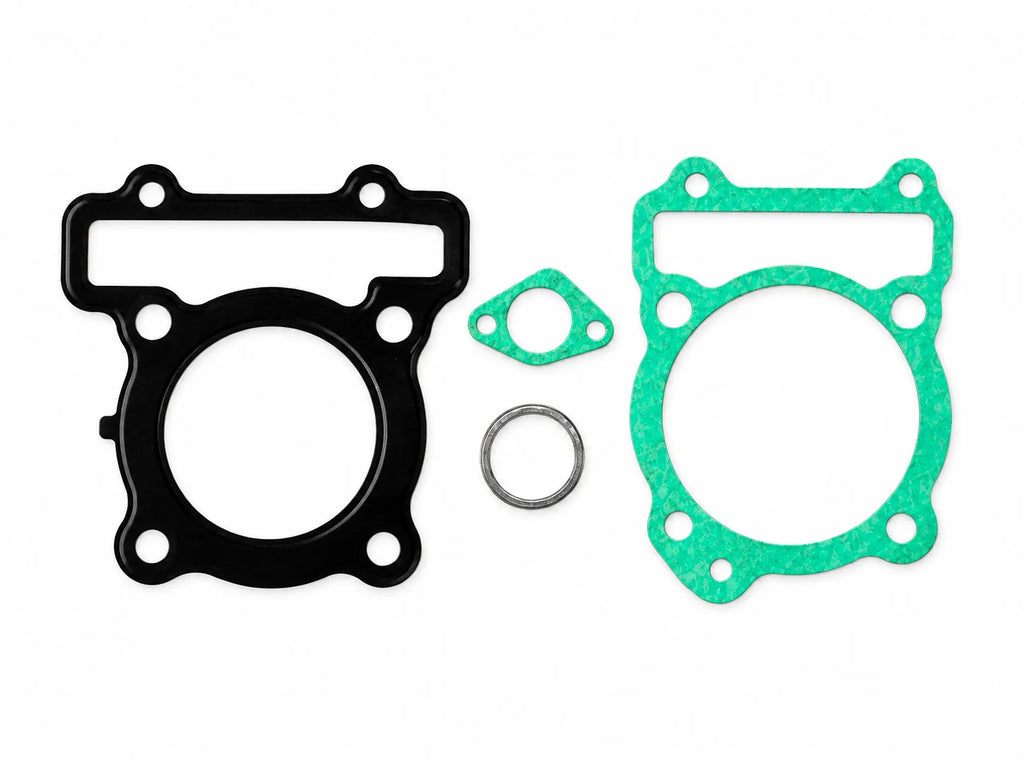

VICTECH top-end gasket set for the Yamaha XT250, model years 2008–2025. Supplied as one set with cylinder head, cylinder base, cam chain tensioner and exhaust gaskets. Compare the four supplied gaskets with the parts required for your repair before ordering.

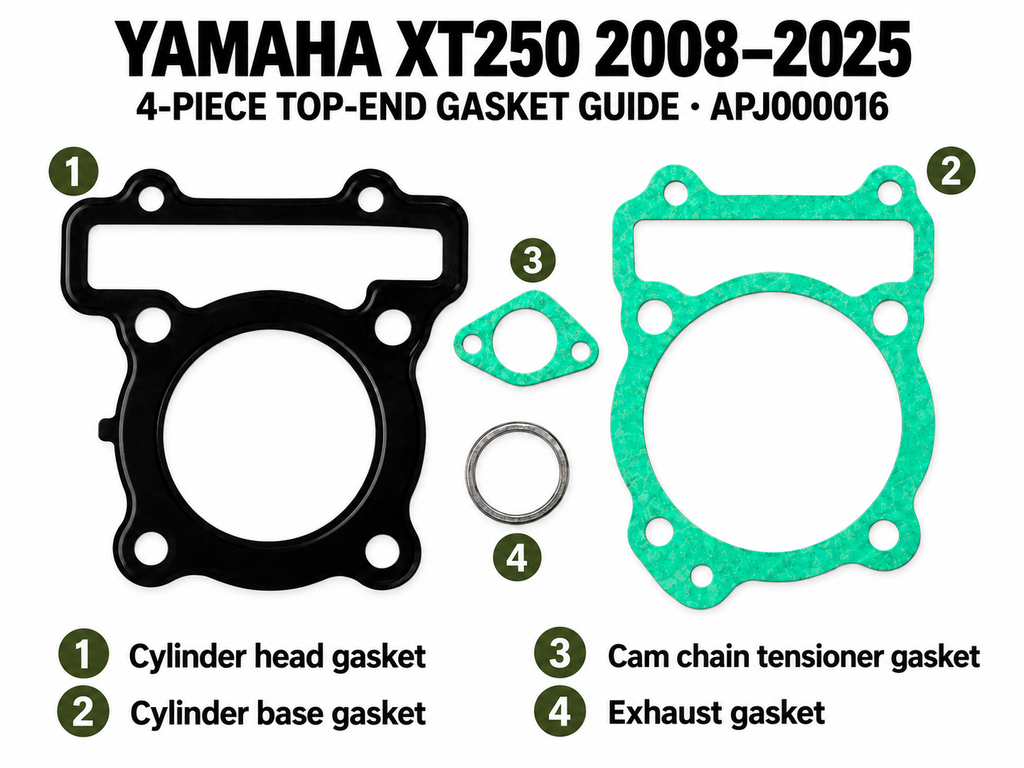

- 1 × Cylinder head gasket
- 1 × Cylinder base gasket
- 1 × Cam chain tensioner gasket
- 1 × Exhaust gasket
Includes only the four gaskets listed above. Clutch and stator cover gaskets, oil seals, valve stem seals and O-rings are not included. Check your repair requirements for additional sealing parts.
Technical specifications
| Quantity supplied | 4 gaskets |
|---|---|
| Motorcycle | Yamaha XT250 |
| Model years | 2008–2025 |
| Package format | Flat pack |
| Set configuration | Part A / top end |
| Product type | Top End Gasket Sets |
| Cylinder head gasket inner diameter | Ø 76 mm — head-gasket opening |
| Yamaha comparison reference — Cylinder head gasket | 2008–2012: 5XT-11181-00-00 · 2013–2025: 5XT-11181-20-00 |
| Yamaha comparison reference — Cylinder base gasket | 2008–2012: 5XT-11351-00-00 · 2013–2025: 4D3-11351-00-00 |
| Yamaha comparison reference — Cam chain tensioner gasket | 5XT-12213-00-00 |
| Yamaha comparison reference — Exhaust gasket | 3GD-14613-00-00 |
Packaged product — weight & dimensions
| Packaged product weight | 3.5 oz (99.2 g) |
|---|---|
| Packaged dimensions (L × W × H) | 7 × 7 × 0.3 in (17.78 × 17.78 × 0.76 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Remove old gasket material and inspect the mating surfaces before assembly. Follow the Yamaha service manual for surface preparation, gasket placement, sealant requirements, tightening sequence and torque specifications.
OEM reference note: The Yamaha numbers identify original components for comparison, including separate references for 2008–2012 and 2013–2025 where shown. Manufacturer-certified interchange for VICTECH 3713 has not been documented. This is a VICTECH aftermarket four-gasket set, not a Yamaha OEM kit. The 76 mm measurement refers to the head-gasket opening, not the engine cylinder bore.
Yamaha OEM reference sources
2008 XT250 cylinder diagram · 2013 XT250 cylinder diagram · 2025 XT250 cam chain tensioner diagram
Material & construction
TEADIT NA-1005 fiber material is used for two gaskets in this VICTECH set, as confirmed by APJ Motorsports:
- Cylinder base gasket
- Cam chain tensioner gasket
The cylinder head gasket and exhaust gasket are excluded from these material specifications.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
