ATHENA
Athena Water Pump Repair Kit Yamaha YZ450F 2006–2009
- Manufacturer part #
- VE10095000005
- Supplier reference
- 5374
- APJ SKU
- APJ000008
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.
Water pump sealing service kit · Yamaha YZ450F 2006–2009

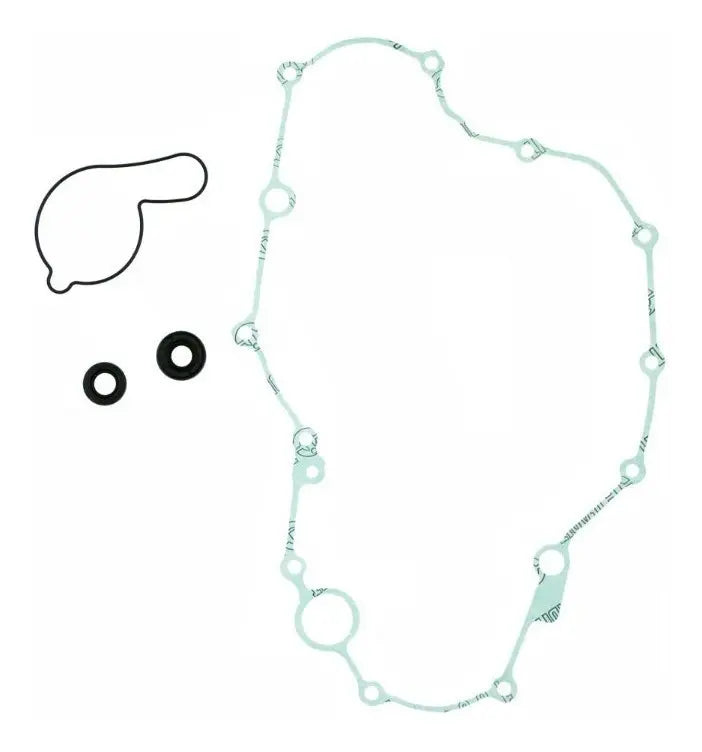

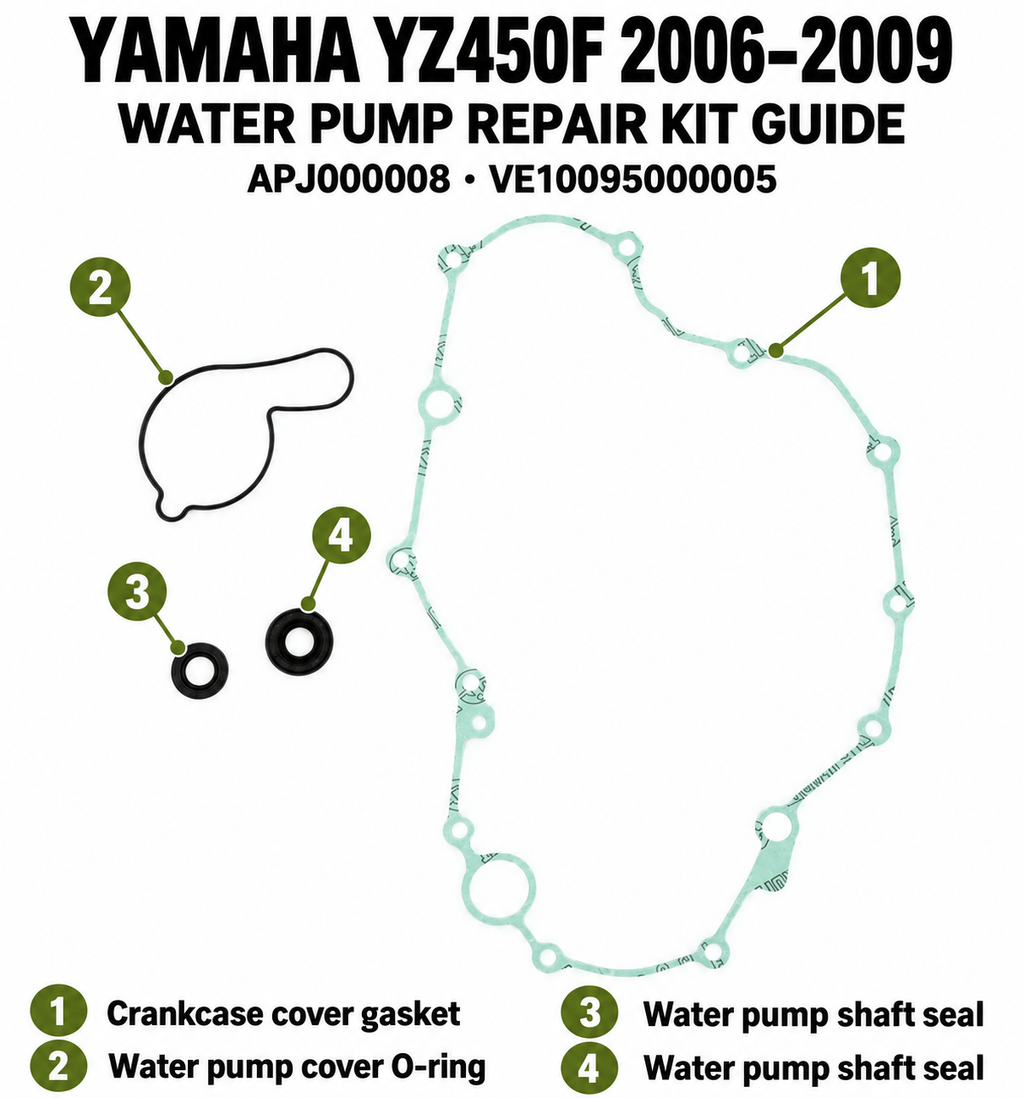

ATHENA water pump repair kit, manufacturer reference VE10095000005 and supplier reference 5374. The pictured set contains a crankcase cover gasket, a shaped water pump cover O-ring and two water pump shaft seals for pump sealing service. See the numbered guide to identify each supplied component.
- 1 × Crankcase cover gasket — image reference 1
- 1 × Water pump cover O-ring — image reference 2
- 2 × Water pump shaft seals — image references 3 and 4
Contents are identified from the product photograph. Pump shaft, impeller, bearings, fasteners and coolant are not pictured or included in this listing.
Technical specifications
| Quantity supplied | 1 service kit — 4 pictured components |
|---|---|
| Motorcycle | Yamaha YZ450F |
| Model years | 2006–2009 |
| Package format | Service kit |
| Product type | Water Pump Repair Kits |
| Assembly | Engine water pump |
| Yamaha OEM comparison — Crankcase cover gasket | 2S2-15462-00-00 / 2S2-15462-10-00 |
| Yamaha OEM comparison — Water pump cover O-ring | 5BE-12439-00-00 |
| Yamaha OEM comparison — Water pump shaft seals | 93102-12106-00 and 93109-11073-00 |
Packaged product — weight & dimensions
| Packaged product weight | 2.5 oz (70.9 g) |
|---|---|
| Packaged dimensions (L × W × H) | 14 × 9.5 × 0.3 in (35.56 × 24.13 × 0.76 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Drain the fluids required by the Yamaha service manual. Inspect the pump shaft, bearing and housing for wear or damage. Fit seals in the specified direction and to the correct depth using the proper tool; verify gasket seating, fastener torque and coolant bleeding procedure. Check for leaks after service.
OEM reference note: Yamaha numbers identify original components for comparison, not manufacturer-certified interchange of every component in this kit. Match the removed parts and the exact model year. This ATHENA kit is an aftermarket product.
Yamaha reference sources
Yamaha cover gasket and O-ring references · YZ450F water pump diagram
Material & construction
The pictured kit combines a sheet gasket with a molded cover O-ring and two shaft seals. Exact sheet grade, elastomer compounds and operating temperature and pressure ratings have not been verified for VE10095000005.
