ATHENA
Athena Water Pump Oil Seal Yamaha 10 × 31 × 13.5 mm
- Manufacturer part #
- M735600234020
- Supplier reference
- 5664
- APJ SKU
- APJ000007
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.

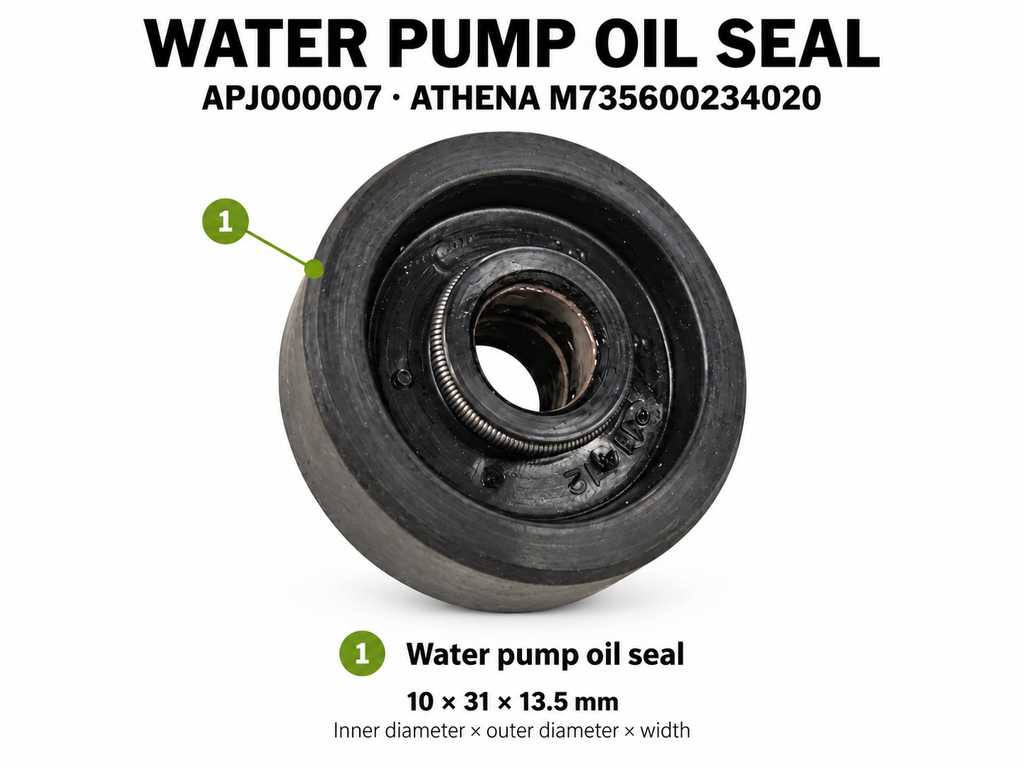

1 water pump oil seal · 10 × 31 × 13.5 mm · ATHENA M735600234020
Replacement water pump oil seal for the listed Yamaha motorcycle, scooter and ATV applications. Identify your replacement by manufacturer part number M735600234020 and compare the dimensions with the original seal before ordering.
- 1 × Water pump oil seal — ATHENA M735600234020
Water pump shaft, bearings, cover gasket, impeller and other pump components are not included.
Technical specifications
| Quantity supplied | 1 water pump oil seal |
|---|---|
| Motorcycle | Yamaha motorcycles, scooters and ATVs — see application tables |
| Model years | Varies by model — see application tables |
| Package format | Single seal |
| Product type | Water Pump Seals |
| Seal inner diameter | 10 mm |
| Seal outer diameter | 31 mm |
| Seal width | 13.5 mm |
| Assembly | Water pump |
| Yamaha OEM comparison reference | 93103-10011-00 |
| Related Yamaha OEM references | 93103-10168-00 · 93103-10801-00 |
Packaged product — weight & dimensions
| Packaged product weight | 0.85 oz (24.1 g) |
|---|---|
| Packaged dimensions (L × W × H) | 5 × 2.5 × 0.5 in (12.70 × 6.35 × 1.27 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Inspect the water pump shaft, seal running surface, bearings and housing for wear or damage. Follow the vehicle service manual for seal orientation, lubrication, installation depth and the correct installation tool. Do not strike the sealing lip or spring. Check the cooling system and engine oil after service as directed by the manufacturer.
OEM reference note: Yamaha numbers identify original components for comparison. This is an ATHENA replacement seal, not a Yamaha-branded part. Check the exact OEM reference and original seal profile before installation.
Application references
Yamaha OEM seal records · Water pump shaft seal dimensions and application guide
Material & construction

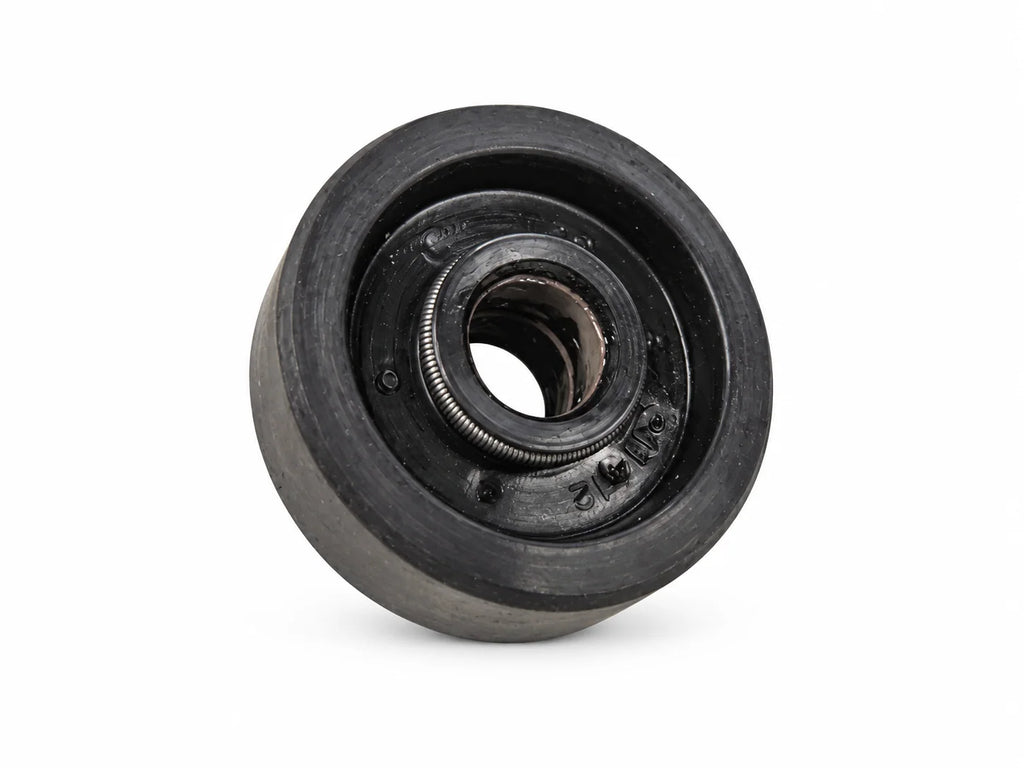

Water pump shaft seal with a molded sealing body and a visible metal garter spring, as shown in the product photo. Elastomer grade and operating temperature and pressure ratings are not specified in the verified manufacturer information for this reference.
