Victech Engine Gasket Set Honda CRF250F 2019–2025
- Manufacturer part #
- 5861
- APJ SKU
- APJ000003
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.
6 pieces · Head-gasket opening Ø 73 mm · Honda CRF250F 2019–2025
Multi-Layer Steel (MLS) Head Gasket · TEADIT NA-1005 Gasket Material

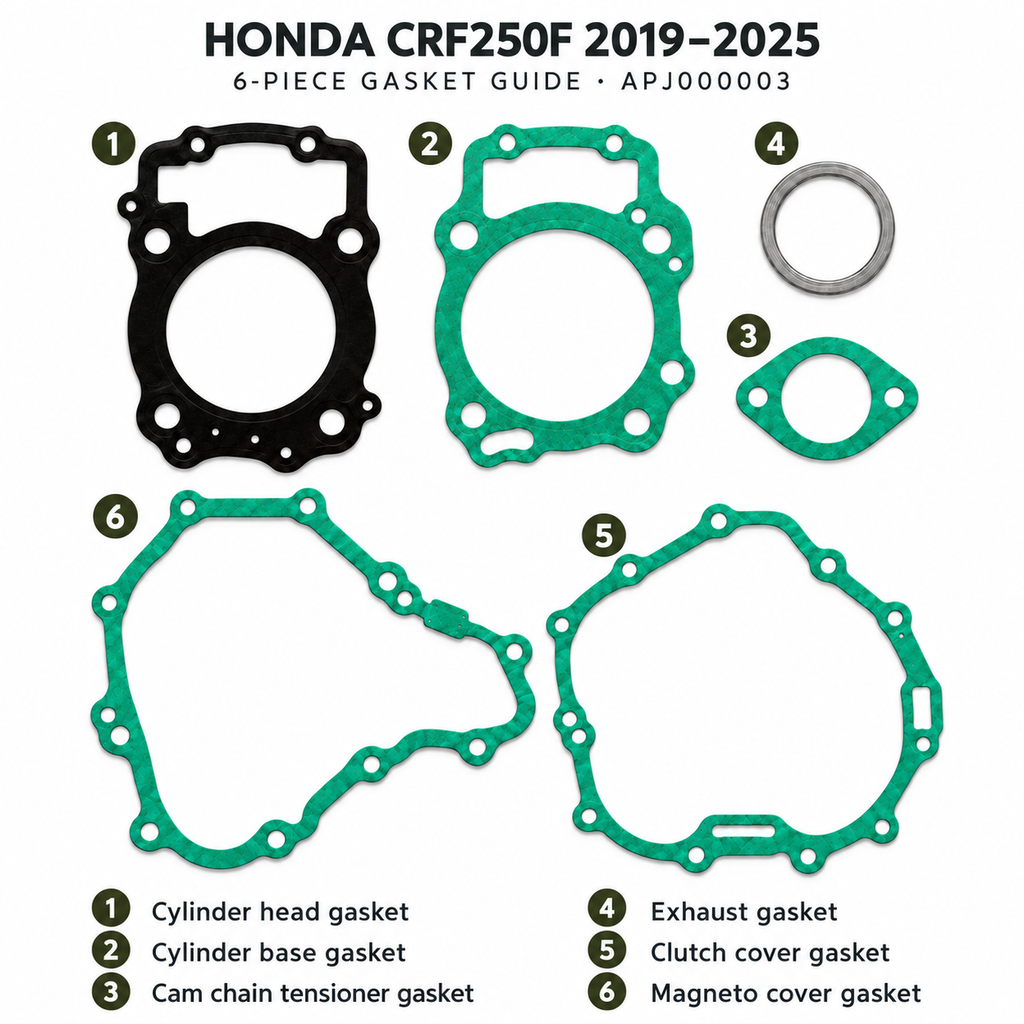

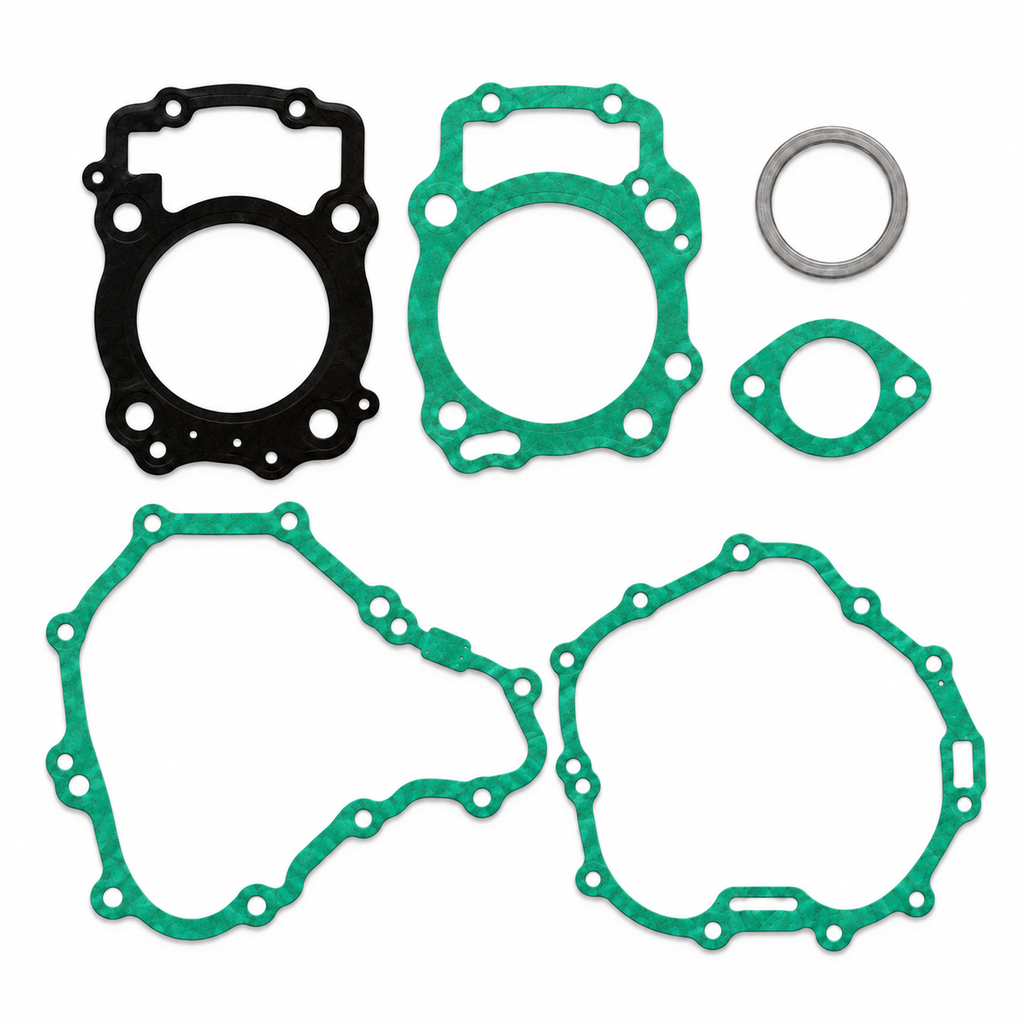

VICTECH gasket set for the Honda CRF250F, model years 2019–2025. Supplied as one set with the six components listed below, covering the cylinder head, cylinder base, cam chain tensioner, exhaust, clutch cover and magneto cover. Compare the included gaskets with the parts required for your repair before ordering.
- 1 × Cylinder head gasket
- 1 × Cylinder base gasket
- 1 × Cam chain tensioner gasket
- 1 × Exhaust gasket
- 1 × Clutch cover gasket
- 1 × Magneto cover gasket
Technical specifications
| Quantity supplied | 6 gaskets |
|---|---|
| Motorcycle | Honda CRF250F |
| Model years | 2019–2025 |
| Package format | Flat pack |
| Product type | Engine gasket set |
| Cylinder head gasket inner diameter | Ø 73 mm — head-gasket opening |
| Honda reference — Cylinder head gasket | 12251-K31-901 |
| Honda reference — Cylinder base gasket | 12191-K31-901 |
| Honda reference — Cam chain tensioner gasket | 14560-KRM-840 |
| Honda reference — Exhaust pipe gasket | 18291-MM5-860 |
| Honda reference — Right crankcase / clutch cover gasket | 11394-K31-901 |
| Honda reference — Left crankcase / magneto cover gasket | 11395-K31-901 |
Packaged product — weight & dimensions
| Packaged product weight | 4 oz (113.4 g) |
|---|---|
| Packaged dimensions (L × W × H) | 11.5 × 9 × 0.3 in (29.21 × 22.86 × 0.76 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Remove residual gasket material and inspect the mating surfaces before assembly. Follow the Honda service manual for surface preparation, gasket placement, sealant requirements, tightening sequence and torque.
OEM reference note: The Honda numbers are comparison references from CRF250F parts diagrams; manufacturer-certified interchange for VICTECH 5861 has not been documented. This is a VICTECH aftermarket six-gasket set, not a Honda OEM kit. Confirm the exact model year, gasket profile and dimensions before installation. The 73 mm measurement refers to the head-gasket opening, not the engine cylinder bore.
Honda OEM reference sources
Compared against Honda CRF250F parts diagrams for 2019 and 2025: 2019 gasket kit A · 2025 gasket kit A · 2019 gasket kit B · 2025 gasket kit B.
Material & construction
Multi-Layer Steel (MLS) Cylinder Head Gasket: The cylinder head gasket uses multi-layer steel construction, as confirmed by APJ Motorsports. The exact layer count and steel grade have not been documented for VICTECH 5861. This gasket is separate from the four TEADIT NA-1005 sheet-material gaskets listed below.
TEADIT NA-1005 fiber material is used for four gaskets in this VICTECH set, as confirmed by APJ Motorsports:
- Cylinder base gasket
- Cam chain tensioner gasket
- Clutch cover gasket
- Magneto cover gasket
The MLS cylinder head gasket and exhaust gasket are not made from the four TEADIT NA-1005 sheet-material gaskets described above. The exhaust gasket material has not been specified.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
