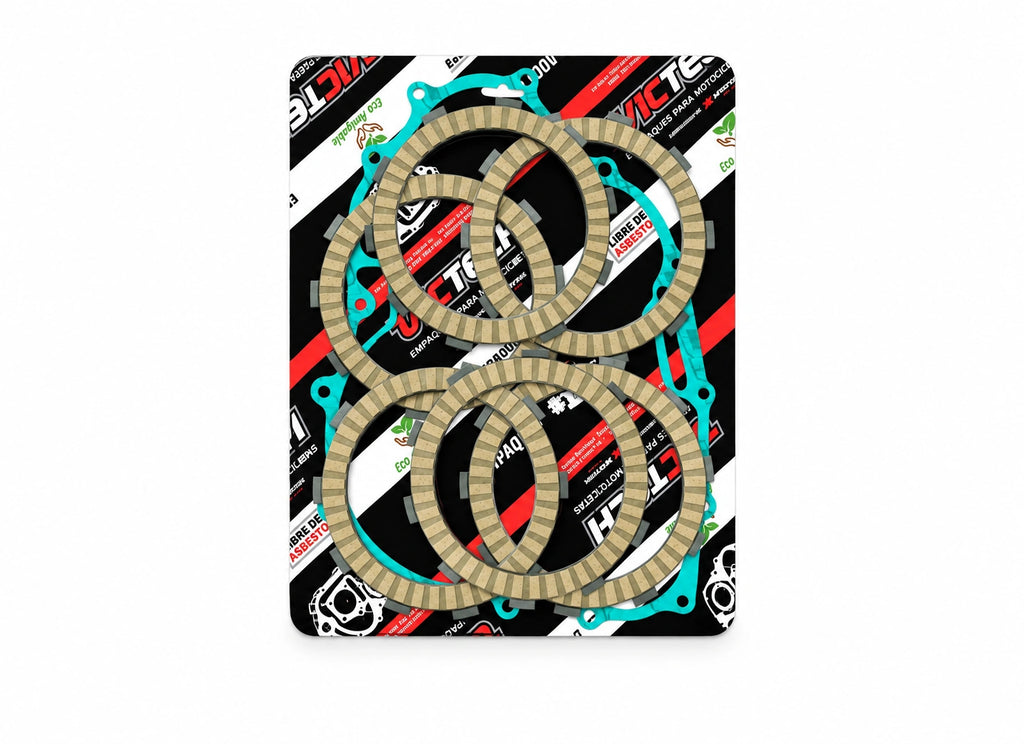

Victech Clutch Disc Set + Gasket Yamaha XT250 2008–2025
- Supplier reference
- 5988
- APJ SKU
- APJ000006
In stock · Ready to ship
Prepared within 1 business day · Tracking included.
Shipping & 30-day returns
Standard: $8, or free on orders of $70 or more. Estimated transit: 3–5 business days after shipment.
Express: $15. Estimated transit: 1–2 business days after shipment. Preparation time is additional; available options appear at checkout.
Returns: Request within 30 days of delivery. Items must be unused and in their original packaging. Contact APJ before returning anything. Return shipping is the customer's responsibility unless APJ confirms an incorrect or defective item.
Product details & included items.

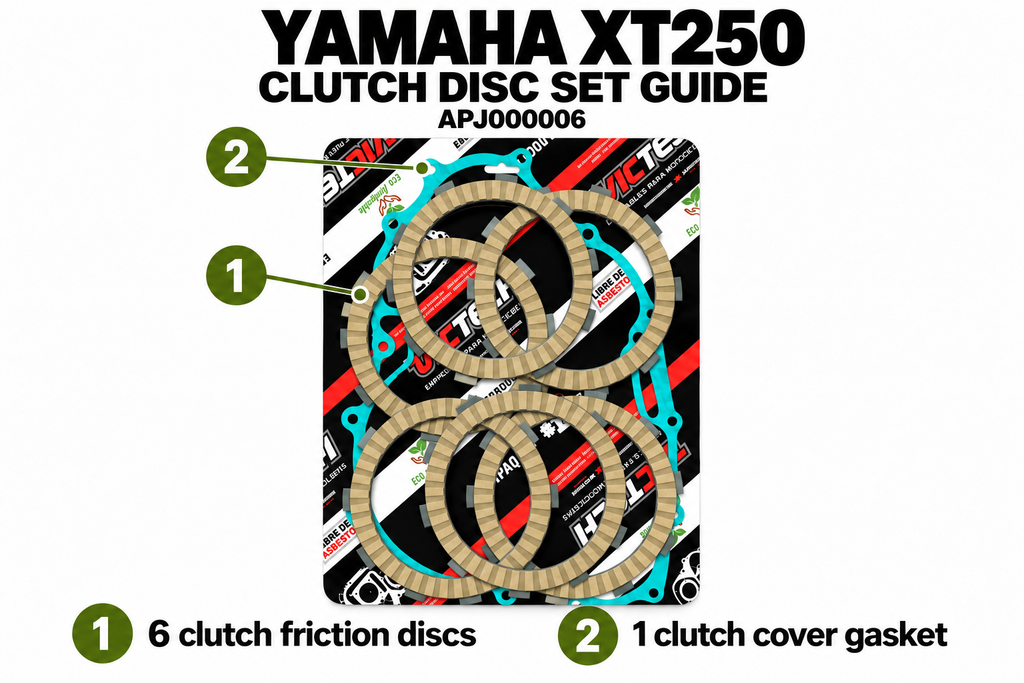

6 friction discs + 1 cover gasket · VICTECH 5988
Replacement clutch friction discs and clutch cover gasket for the Yamaha XT250 application described below. This set combines the friction disc replacement and cover resealing components for the same clutch service.
- 6 clutch friction discs
- Clutch cover gasket — reference 3442
Technical specifications
| Quantity supplied | 6 friction discs + 1 cover gasket |
|---|---|
| Product type | Clutch Disc Set |
| Cover gasket reference | 3442 |
| Friction disc inner diameter | 103 mm |
| Friction disc outer diameter | 136 mm |
| Friction disc thickness | 2.86 mm |
| Yamaha OEM comparison — Friction discs | 1KT-16321-00-00 and 5DH-16321-00-00 |
| Yamaha OEM comparison — Clutch cover gasket | 2008–2012: 5XT-15461-00-00; 2013–2025: 4D3-15461-00-00 |
Packaged product — weight & dimensions
| Packaged product weight | 8 oz (226.8 g) |
|---|---|
| Packaged dimensions (L × W × H) | 12.5 × 9.5 × 0.3 in (31.75 × 24.13 × 0.76 cm) |
Measurements refer to the packaged product, not the individual component dimensions.
Installation & preparation
Inspect the clutch basket, hub, steel plates and springs before assembly. Prepare friction discs and verify stack height, service limits and bolt torque using the motorcycle service manual.
OEM comparison note: Yamaha XT250 diagrams list four friction discs under 1KT-16321-00-00 and two under 5DH-16321-00-00. These identify the original components; they do not establish a manufacturer-certified replacement of both types by six identical VICTECH discs. Compare disc profiles, plate order and stack height with the service manual. Confirm the included gasket against the original cover, especially across the 2013 model change.
OEM reference sources
Yamaha XT250 clutch diagram · 2008–2012 cover gasket · 2013–2025 cover gasket
Material & construction
TEADIT NA-1005 fiber material is used for the included clutch cover gasket (VICTECH 3442), as confirmed by APJ Motorsports.
These TEADIT specifications apply only to the cover gasket, not the six friction discs.
TEADIT describes NA-1005 as a compressed non-asbestos sheet combining aramid and other synthetic fibers with a nitrile rubber (NBR) binder, suitable for applications involving petroleum derivatives and oils.
TEADIT sheet-material technical data
| Continuous / peak temperature | 240 °C / 400 °C |
|---|---|
| Continuous / peak pressure | 50 bar / 110 bar |
These are sheet-material reference values, not operating ratings for the engine or complete gasket set. Suitability depends on service conditions; maximum pressure and temperature must not be assumed to apply simultaneously.
